This article covers Singular Value Decomposition (SVD) and related matrix decompositions in Go. SVD is fundamental to many applications including dimensionality reduction, pseudoinverse computation, and low-rank approximation.
Linear Algebra: Golang Series - View all articles in this series.
Previous articles in this series:
- Linear Algebra in Go: Vectors and Basic Operations
- Linear Algebra in Go: Matrix Fundamentals
- Linear Algebra in Go: Solving Linear Systems
- Linear Algebra in Go: Eigenvalue Problems
This continues from Part 4: Eigenvalue Problems.
SVD Decomposition
The SVD factors a matrix as $\boldsymbol{A} = \boldsymbol{U}\boldsymbol{\Sigma}\boldsymbol{V}^T$:
package main
import (
"fmt"
"gonum.org/v1/gonum/mat"
)
func main() {
A := mat.NewDense(4, 3, []float64{
1, 2, 3,
4, 5, 6,
7, 8, 9,
10, 11, 12,
})
var svd mat.SVD
ok := svd.Factorize(A, mat.SVDThin)
if !ok {
fmt.Println("SVD factorization failed")
return
}
// Get singular values
values := svd.Values(nil)
fmt.Println("Singular values:")
for i, v := range values {
fmt.Printf(" σ%d = %.6f\n", i+1, v)
}
// Get U and V matrices
var U, V mat.Dense
svd.UTo(&U)
svd.VTo(&V)
fmt.Println("\nU matrix:")
fmt.Printf("%v\n", mat.Formatted(&U, mat.Prefix(" ")))
fmt.Println("\nV matrix:")
fmt.Printf("%v\n", mat.Formatted(&V, mat.Prefix(" ")))
}

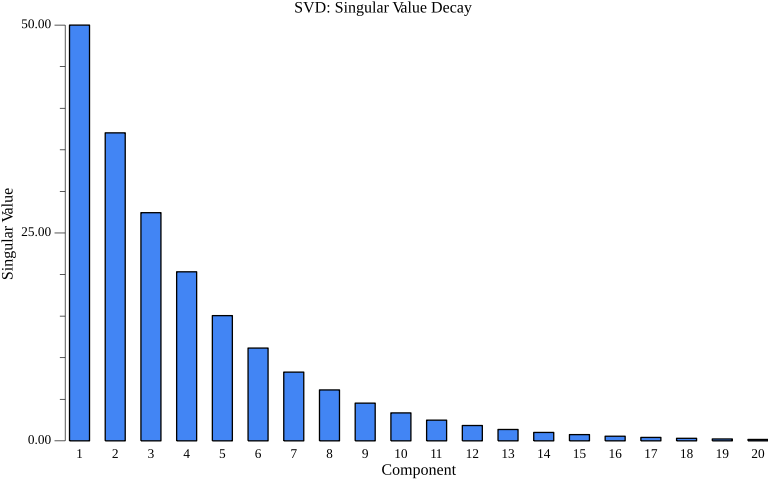

Visualizing Singular Value Decay
Singular values typically decay rapidly, which enables low-rank approximations:
package main
import (
"fmt"
"math"
"gonum.org/v1/plot"
"gonum.org/v1/plot/plotter"
"gonum.org/v1/plot/vg"
"image/color"
)
func main() {
p := plot.New()
p.Title.Text = "Singular Value Decay"
p.Y.Label.Text = "Singular Value"
p.X.Label.Text = "Index"
// Simulate typical singular value decay
n := 15
vals := make(plotter.Values, n)
for i := 0; i < n; i++ {
vals[i] = 50 * math.Exp(-0.3*float64(i))
}
bars, _ := plotter.NewBarChart(vals, vg.Points(20))
bars.Color = color.RGBA{R: 66, G: 133, B: 244, A: 255}
p.Add(bars)
labels := make([]string, n)
for i := 0; i < n; i++ {
labels[i] = fmt.Sprintf("%d", i+1)
}
p.NominalX(labels...)
p.Save(6*vg.Inch, 4*vg.Inch, "svd.png")
}
The rapid decay of singular values explains why low-rank approximations work well - most of the “information” is captured in the first few components.
Low-Rank Approximation
Keep only the top k singular values:
func lowRankApprox(A *mat.Dense, k int) *mat.Dense {
var svd mat.SVD
svd.Factorize(A, mat.SVDThin)
values := svd.Values(nil)
var U, V mat.Dense
svd.UTo(&U)
svd.VTo(&V)
rows, cols := A.Dims()
// Truncate to k components
Uk := U.Slice(0, rows, 0, k).(*mat.Dense)
Vk := V.Slice(0, cols, 0, k).(*mat.Dense)
// Construct diagonal matrix with top k singular values
Sk := mat.NewDiagDense(k, values[:k])
// Compute U_k * S_k * V_k^T
var temp mat.Dense
temp.Mul(Uk, Sk)
var result mat.Dense
result.Mul(&temp, Vk.T())
return &result
}
func lowRankExample() {
A := mat.NewDense(5, 4, []float64{
1, 2, 3, 4,
5, 6, 7, 8,
9, 10, 11, 12,
13, 14, 15, 16,
17, 18, 19, 20,
})
fmt.Println("Original matrix:")
fmt.Printf("%v\n\n", mat.Formatted(A))
for k := 1; k <= 3; k++ {
Ak := lowRankApprox(A, k)
diff := mat.NewDense(5, 4, nil)
diff.Sub(A, Ak)
error := mat.Norm(diff, 2)
fmt.Printf("Rank-%d approximation error: %.6f\n", k, error)
}
}
Pseudoinverse via SVD
Compute the Moore-Penrose pseudoinverse:
func pseudoinverse(A *mat.Dense) *mat.Dense {
var svd mat.SVD
svd.Factorize(A, mat.SVDThin)
values := svd.Values(nil)
var U, V mat.Dense
svd.UTo(&U)
svd.VTo(&V)
rows, cols := A.Dims()
minDim := min(rows, cols)
// Invert non-zero singular values
tol := 1e-10 * values[0]
sInv := make([]float64, minDim)
for i, s := range values {
if s > tol {
sInv[i] = 1.0 / s
}
}
// A+ = V * S+ * U^T
SInv := mat.NewDiagDense(minDim, sInv)
var temp mat.Dense
temp.Mul(&V, SInv)
var pinv mat.Dense
pinv.Mul(&temp, U.T())
return &pinv
}
func min(a, b int) int {
if a < b {
return a
}
return b
}
QR Decomposition
Factor $\boldsymbol{A} = \boldsymbol{Q}\boldsymbol{R}$:
func qrDecomposition() {
A := mat.NewDense(4, 3, []float64{
1, 2, 3,
4, 5, 6,
7, 8, 10,
10, 11, 13,
})
var qr mat.QR
qr.Factorize(A)
var Q, R mat.Dense
qr.QTo(&Q)
qr.RTo(&R)
fmt.Println("Q (orthogonal):")
fmt.Printf("%v\n\n", mat.Formatted(&Q, mat.Prefix(" ")))
fmt.Println("R (upper triangular):")
fmt.Printf("%v\n\n", mat.Formatted(&R, mat.Prefix(" ")))
// Verify Q is orthogonal: Q^T * Q = I
var QTQ mat.Dense
QTQ.Mul(Q.T(), &Q)
fmt.Println("Q^T * Q (should be identity):")
fmt.Printf("%v\n", mat.Formatted(&QTQ, mat.Prefix(" ")))
}
Condition Number
Compute condition number using SVD:
func conditionNumber(A *mat.Dense) float64 {
var svd mat.SVD
svd.Factorize(A, mat.SVDNone)
values := svd.Values(nil)
return values[0] / values[len(values)-1]
}
func conditionExample() {
// Well-conditioned
A := mat.NewDense(3, 3, []float64{
1, 0, 0,
0, 2, 0,
0, 0, 3,
})
// Ill-conditioned
B := mat.NewDense(3, 3, []float64{
1, 1, 1,
1, 1, 1.0001,
1, 1.0001, 1,
})
fmt.Printf("Well-conditioned matrix: κ = %.2f\n", conditionNumber(A))
fmt.Printf("Ill-conditioned matrix: κ = %.2e\n", conditionNumber(B))
}
Summary
This article covered:
- SVD decomposition: $\boldsymbol{A} = \boldsymbol{U}\boldsymbol{\Sigma}\boldsymbol{V}^T$
- Low-rank approximation using truncated SVD
- Pseudoinverse computation
- QR decomposition
- Condition number for numerical stability
